Description
Product Description
|
Place of Origin:
|
China
|
|
Brand Name:
|
Geant
|
|
Model Number:
|
GEANT-RS8 MINI HD PLUS
|
|
Operation System:
|
Linux
|
|
Features:
|
USB PVR
|
|
Processor Core:
|
Dual Core
|
|
Processor:
|
GX6605S
|
|
Support Resolution:
|
1024*768
|
|
WiFi:
|
7601 & 5370
|
|
Product name:
|

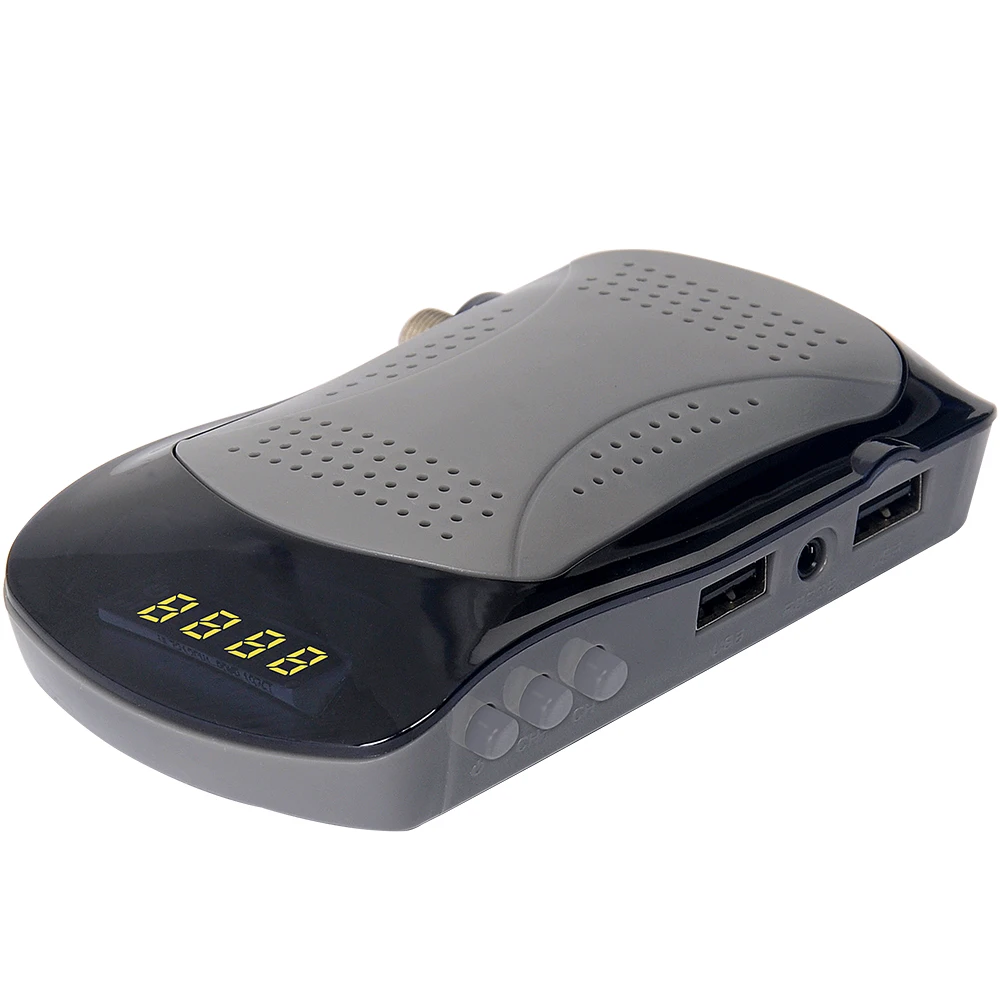

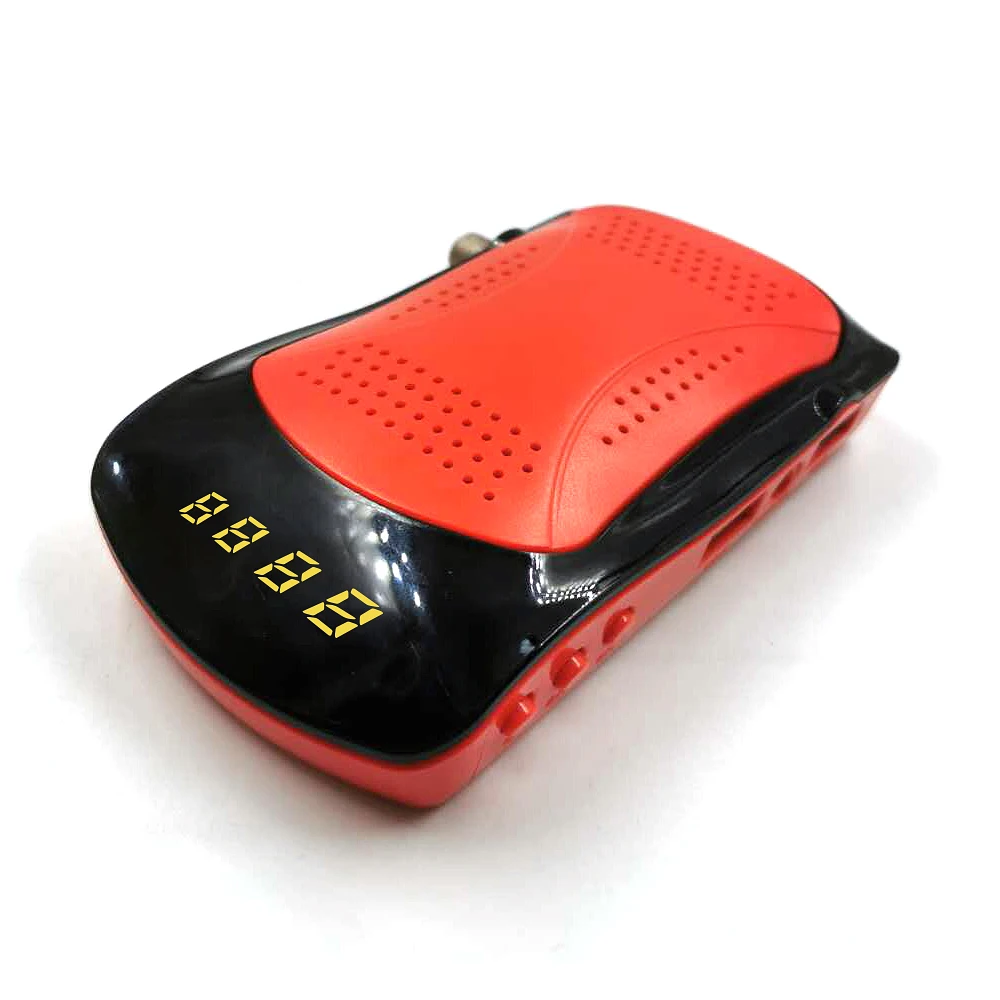

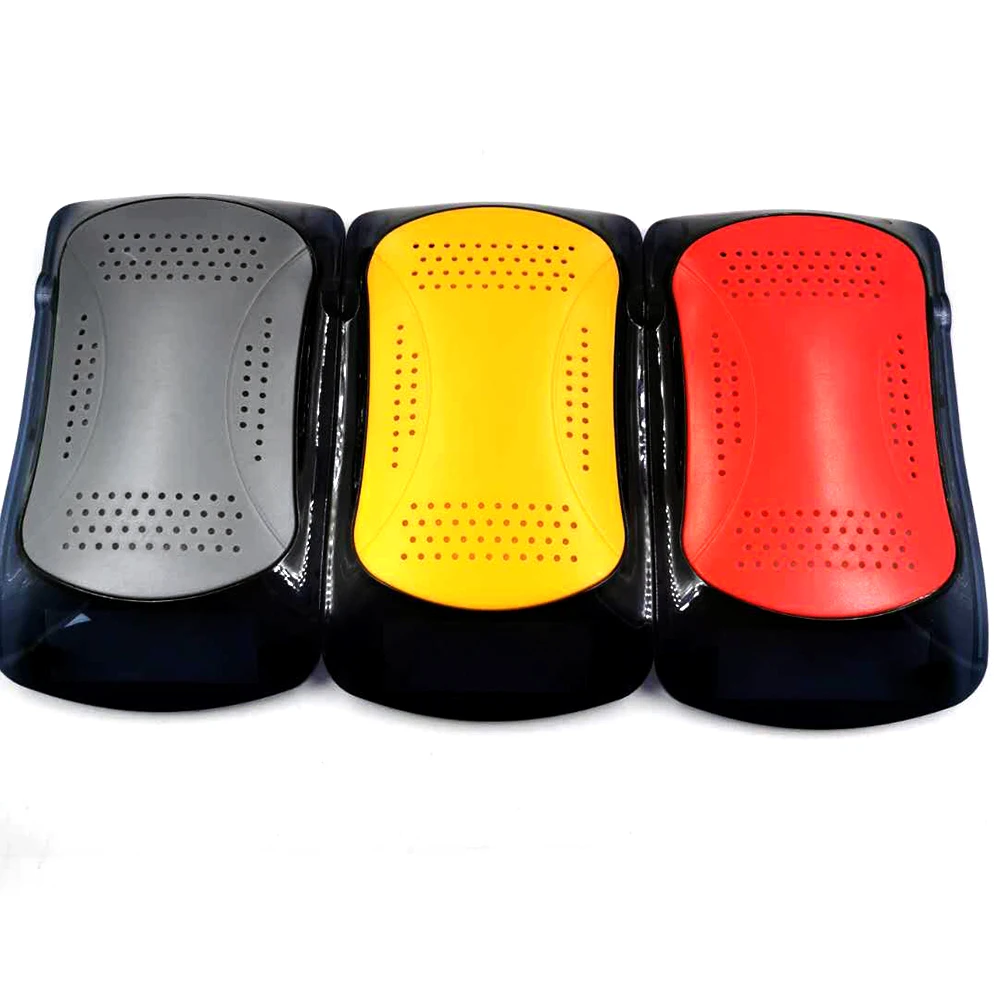

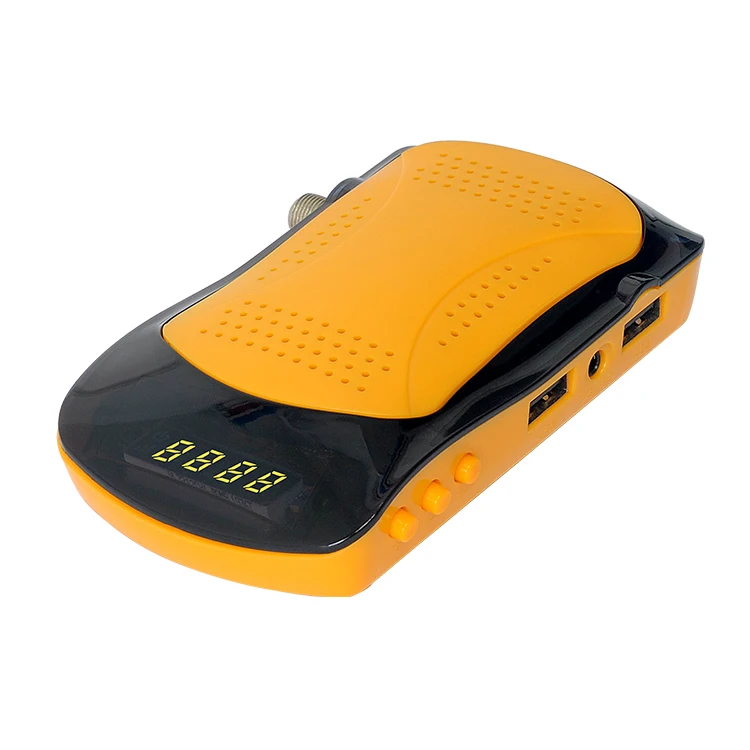

h.264 dvb s2 tv receiver HD satellite decoder iptv iks
|
|
Chipset:
|
GX6605S
|
|
Resolution:
|
720I/P,1080I,1080P
|
|
OSD:
|
Multi-languages OSD
|
Specification
|
Feature
|
1 Fully compliant with DVB-S/S2 MPEG4 standard
2 Support MEPG-4 AVC(H.264)main and high profile to level4.1 Support MEPG-2 HD/SD decoding (MP@HL/ML) 3 HE AAC5.1, HE AAC+, Dolby Digital, Dolby Digital plus audio decoding 4 HE AAC5.1, HE AAC+, Dolby Digital/Dolby Digital plus Down-mixe to two channels 5 HE AAC5.1, HE AAC+, Dolby Digital/Dolby Digital plus PCM digital audio output 6 Multi satellite seach, network search ,blind search 7 Support Muitil Language: English, Spain, Russian ,Arabic, Perisa 8 Video decoding and output : 1080p/1080i/720p 9 Analog Video output: PAL/NTSC 10 Conversion between SD programs and HD programs 11 Subtitle (OSD output) 12 Aspect ratio: 4:3/16:9 13 Electronic program guide (EPG) 14 Software upgrade (OTA or USB) 15 USB2.0 supported for upgrade, PVR and timeshifting 16 32 bits true color on screen display (OSD) 17 medial play: support avi ,mkv, ts, mp3, mp4. 18. 7 days EPG(Electronic Program Guide) 19. 8 favorite group and parental lock supported 20.Program lock, delete, move ,rename supported 21.DisEqc 1.0,1.1,1.2 and USALS supportes 22.Storing memeory: 100 satellites ,4000 transpoders and 5000 channels |
|
System Resources
|
CPU/MPU/Mainchip: GX6605S (MIPS 34K@600MHz SDRAM 512Mbit)
Flash memory: 32Mbit S2 Tuner: RDA 5815 T2 Tuner: R848 Demodulator: ATB7828 |
|
Demultiplexer
|
Standard: ISO/IEC 13818-1
Input Max. Bit Stream Rate: 120Mbps |
|
Tuner
|
High sensitive and reliable silicon tuner: NMI 120
Input Frequency Range : VHF: 177~230MHz, UHF: 470~862MHz IF Bandwidth : 6 MHz Input Signal Level : －85dBm ～ －20dBm RF Input Connector: D-type connector(RF IN) Input impedance : 75Ω |
|
De-modulator
|
Modulation mode : OFDM (Orthogonal Frequency Division Multiplexing)
Demodulation :64QAM, 16QAM and QPSK (4QAM) sub-carriers Guard interval : 1/4, 1/8, 1/16, 1/32 FEC Code rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
|
Connector
|
RF Input: 1 x IEC169-2, Female for DVB-S2
RF Output: 1 x IEC169-2,Fema FOR DVB-T2 CVBS Output: 1 x HDMI HDMI Output: USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting Extra LED display |
|
Environmental Conditions
|
Input Voltage: DC 12V 1A
Power Consumption: Max. 5W Stand-by Power Consumption: <0.5W Operating temperature: 0 ~ 45°C |
